Bearing chamfer measuring projector

[Features]

(1) Model SL-205LT allows direct readings of inner chamfer diameter dimensions with its scaled screen.
(2) Models ST-200HN and ST-205LT are equipped with each one piece of 20×lens as a standard accessory.
(3) Screen diameter of 200mm is a compact and simple design.
(4) Using halogen lamps and high precision projection lenses, the projector produces sharp and clear projection images.
(5) One-touch inspections of bearing are made possible with specialized tools by installing the projector in bearing manufacturing line.

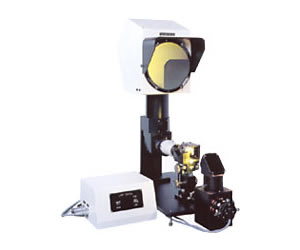

  • ST-200HN(外面取り用)

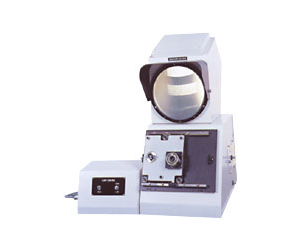

  • ST-205LN(内面取り用)

Specifications

op_st-hyou211
