Oil sealed rotary vacuum pumps
[Operating principle]
Space is generated in the cylinder of the pump by rotating the rotor fixed to the shaft. As a result, gas flows into the space inside the cylinder via the intake port. While the rotor is rotated, the gas between the cylinder and the piston, and between the cylinder and the vane is transferred to a compressed space, and discharged into the oil tank through the exhaust valve.
[Features]
- High durability and long operating-life
- Excellent exhaust characteristics. Easy operation.
- Applicable to vapor processing
The gas ballast valve prevents pump performance deterioration caused by condensable vapors condensing and mixing in with the oil, thus enabling the condensable vapors to be exhausted.

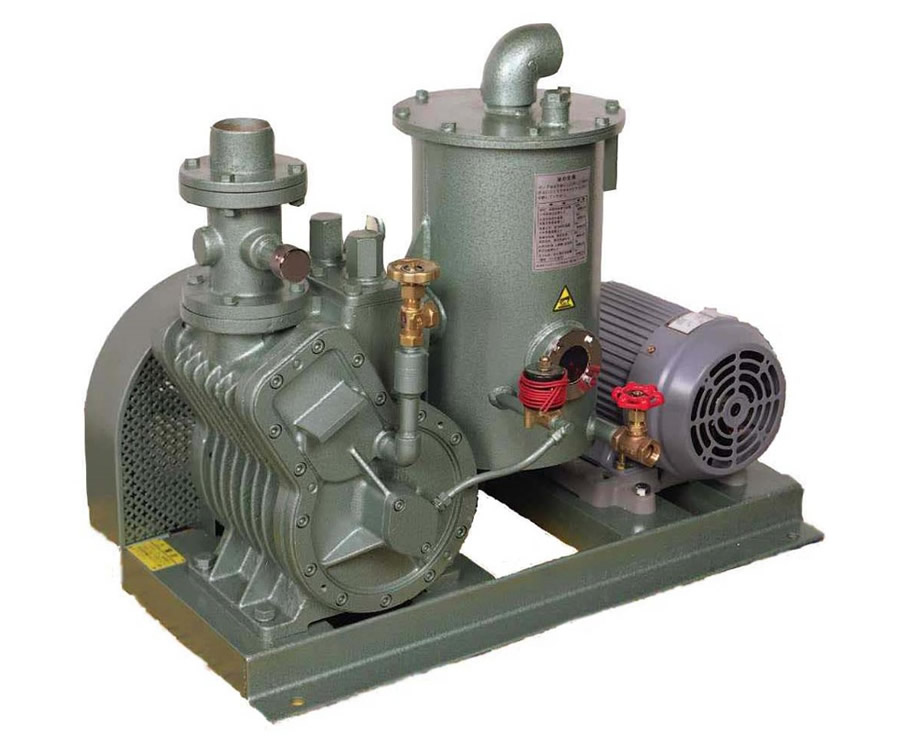

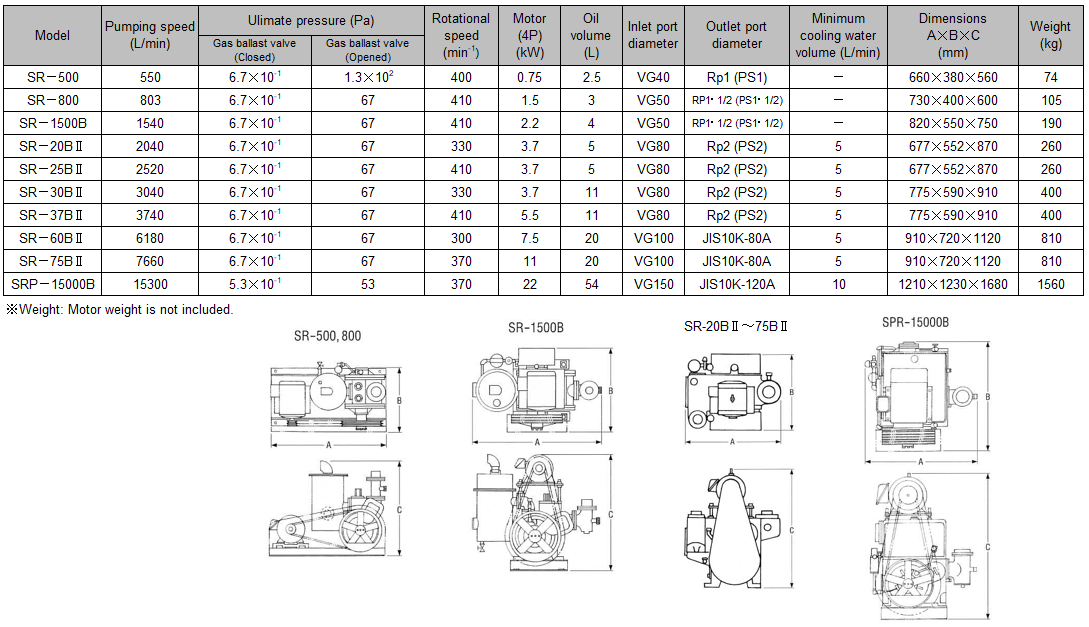

SR/SRP series (Swing piston type)

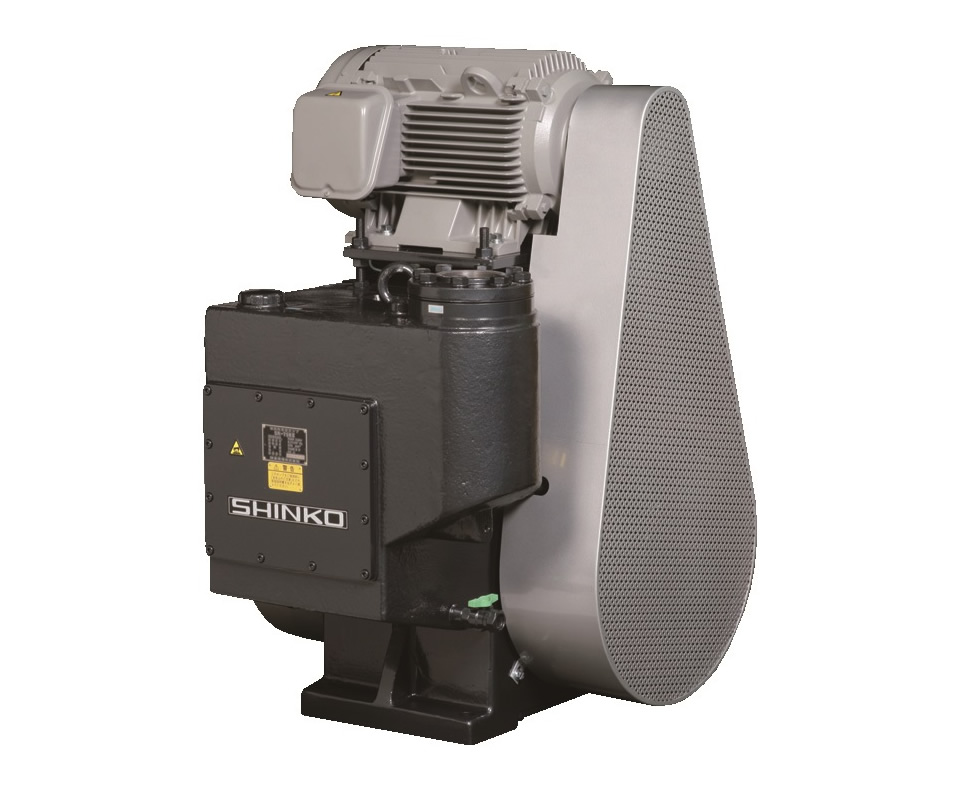

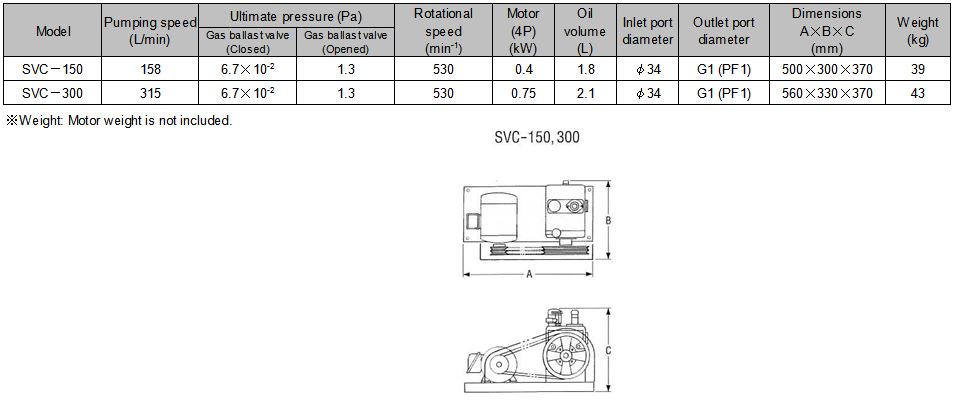

SVC series (Rotary vane type)

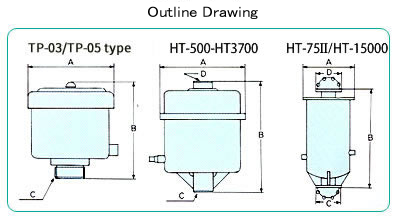

Optional accessory for Oil sealed rotary vacuum pumps: Oil mist trap
When the oil mist trap is attached to the exhaust port of the Oil sealed rotary vacuum pump, oil droplets and mists that may be generated immediately after pump startup or during operation under low vacuum can be eliminated, resulting in a more comfortable work environment. Also, operating noise can be reduced.
■Specifications
